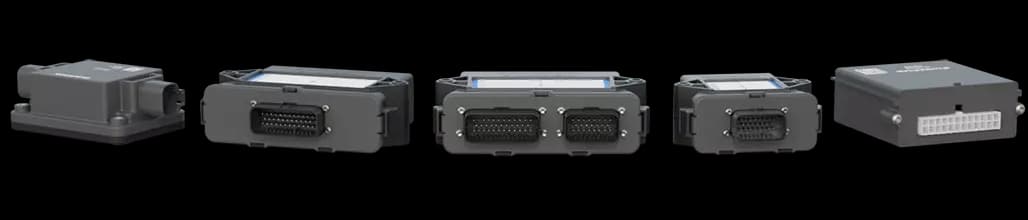

Controllers built
to run the machine.
Controller & I/O modules controls different functions such as relay, valve and motor control for commercial vehicles, off-road vehicles, marine and industrial machines.
Compact Controller
Compact controller using CAN bus meet local specific functions of your vehicle such as multi function IO, proportional valve control, BLDC & Step motor control and high current switch.They are interfacing with a main control unit auxiliary functions with on-board I/O.
Mixed I/O Controller MO 691 H1X
Flexible CAN-based controller with up to 26 configurable I/O channels, 2 A smart high-side outputs, 0.5 A smart low-side outputs and two buffered analog outputs.
Explore model
Valve Controller MO 691 H2X
Compact CAN-based valve controller with eight proportional high-side outputs featuring current feedback and eight 2 A on/off high-side outputs.
Explore modelMotor Controller MO 691 H3X
MO 691 H3X is a compact CAN-bus motor driver for commercial and off-road machines. Six push-pull motor outputs with current feedback drive DC and BLDC motors, supported by encoder, frequency, analog and resistive inputs in a sealed IP67 package.
Explore modelPower Controller MO 691 H4X
MO 691 H4X is a compact CAN-bus I/O module for commercial and off-road machines that need many strong switched outputs. Up to 14 high-side outputs rated 6 A each are backed by analog and digital inputs and a dedicated safety switch output, all in a sealed IP67 package.
Explore model
Advanced Valve & I/O Controller MO 692 H1X
MO 692 H1X is a high-density CAN-bus I/O module for commercial and off-road machines. Twelve proportional outputs with current sense, high-side outputs and a wide mix of analog, current, frequency and resistive inputs are available on two connectors, with two CAN interfaces for flexible machine integration.
Explore model
Versatile CAN-based compact controllers engineered for local machine functions, hydraulic valve driving, motor control, and high-current power switching in commercial and off-road vehicles. The Series 01 lineup features sealed IP67 housings, multi-function configurable I/O (up to 26 channels), current-feedback proportional outputs, BLDC/DC motor drivers, and high-side power outputs (up to 14 channels at 6 A each), offering dual CAN interfaces for seamless integration.
Specify the I/O channel count, valve/motor output requirements, current feedback parameters, and CAN bus architecture (SAE J1939 / CANopen) together with the machine's control system topology.
| Specification | Mixed I/O ControllerMO 691 H1X | Valve ControllerMO 691 H2X | Motor ControllerMO 691 H3X | Power ControllerMO 691 H4X | Advanced Valve & I/O ControllerMO 692 H1X |
|---|---|---|---|---|---|
| Communication | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), up to two CAN interfaces, UDS (ISO 14229) protocol |
| Casting Material | GF 30 % Polyamid | GF 30 % Polyamid | GF 30 % Polyamid | GF 30 % Polyamid | GF 30 % Polyamid |
| Operating Voltage | 8~32 VDC | 8~32 VDC | 8~32 VDC | 8~32 VDC | 8~32 VDC |
| Operating Temperature | -40°C ... +85°C | -40°C ... +85°C | -40°C ... +85°C | -40°C ... +85°C | -40°C ... +85°C |
| Protection Class | IP67 | IP67 | IP67 | IP67 | IP67 |
| Connector | 35 Pin Tyco Seal | 35 Pin Tyco Seal Connector | 35 Pin Tyco Seal Connector | 35 Pin Tyco Seal Connector | 35 Pin Tyco Seal Connector & 23 Pin Tyco Seal Connector |
| I/O Class | Mix I/O Controller | Valve Controller | Motor Driver | IO Module | IO Module |
| Power Consumption | — | 100mA typ. (no load) | 100 mA typ. (no load) | 100 mA typ. (no load) | 100 mA typ. (no load) |
ECO Controller
ECO series controller automate applications using CAN bus, they are cost sensitive units with basic IO functions such as expanding control system capability with on-board I/O.

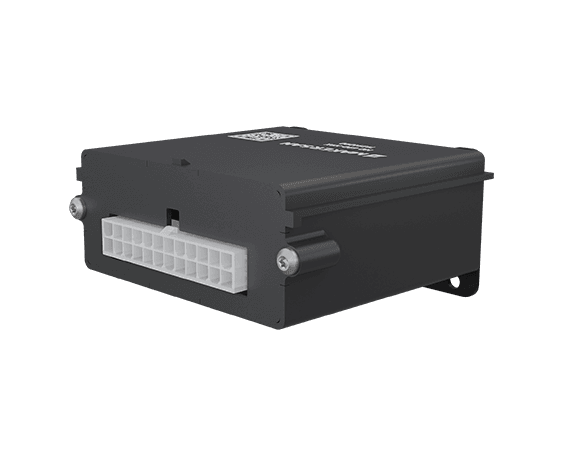

Mix I/O Controller MO 690 H1X
Cost-efficient CAN I/O controller with 19 configurable channels for digital, analog, resistive, current and frequency signals, together with flexible high-side and low-side output functions.
Explore modelPower FET I/O MO 690 H2X
MO 690 H2X is an economical CAN-bus power output module for switching heavy loads on commercial and off-road machines. Six self-protected high-side outputs of up to 10 A each, each with its own battery supply pin, and nine digital inputs connect through a single 24-pin connector.
Explore modelPower Relay I/O MO 690 H3X
MO 690 H3X is an economical CAN-bus relay module for commercial and off-road machines. Eight relay outputs with potential-free normally-open contacts switch loads apart from the module's own supply, and eight digital inputs read switches and signals, all through a single 24-pin connector.
Explore model
Cost-effective CAN-bus controller modules engineered to automate secondary applications and expand system I/O capabilities in commercial and off-road machinery. The Series 02 lineup offers budget-sensitive solutions including 19-channel configurable mixed I/O modules, high-current FET power output units (up to 10 A per channel), and potential-free power relay output modules connected via a single 24-pin connector interface.
Specify the I/O signal mix (digital, analog, resistive, frequency), output type (FET power or relay), current requirements, and CAN bus protocol (SAE J1939 / CANopen) together with the machine's control system topology.
| Specification | Mix I/O ControllerMO 690 H1X | Power FET I/OMO 690 H2X | Power Relay I/OMO 690 H3X |
|---|---|---|---|
| Communication | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol |
| Casting Material | GF 30 % Polyamid | — | — |
| Operating Voltage | 8~32 VDC | 8~32 VDC | 12 VDC (H30), 24 VDC (H31) |
| Operating Temperature | -40°C ... +85°C | — | — |
| Connector | 24 Pin Connector | 24 Pin Connector (2x12, 4.2 mm pitch) | 24 Pin Connector (2x12, 4.2 mm pitch) |
| I/O Class | Mix I/O Controller | Power Output Module | Relay Module |
| Protection Class | IP30 | — | — |
| Power Consumption | 100 mA typ. (no load) | — | — |
Mini Controller
Mini controller specifically designed for use in cost-sensitive applications using CAN bus, they are interfacing with a control unit to drive valves and small motors such as fan control.
Valve Controller MO 699 H1X
Compact CAN-based proportional valve controller with two proportional outputs (max. 2A/ch) with current feedback, individual current feedback and two multifunction inputs. Integrated safety logic and EEPROM provide reliable control for mobile machinery.
Explore model
Motor Controller MO 699 H2X
MO 699 H2X is a low-cost, compact and versatile CAN-bus motor driver. Up to four push-pull motor outputs with current sense drive DC or BLDC motors; the three-output version adds a software-selectable universal input for analog, current, frequency or digital signals. Everything connects through a 2x4 pin Deutsch DT connector set in a sealed IP67 housing.
Explore model
Compact, low-cost CAN-bus controller modules specifically engineered for cost-sensitive applications, hydraulic valve driving, and small motor management in mobile machinery. The Series 03 lineup features IP67-sealed housings, 2x4 pin Deutsch DT connector interfaces, proportional valve drivers with individual current feedback, and versatile motor drivers capable of controlling DC or BLDC motors with integrated safety logic.
Specify the output function (proportional valve driver or DC/BLDC motor control), current feedback parameters, input configuration, and CAN bus protocol (SAE J1939 / CANopen) together with the machine's control system topology.
| Specification | Valve ControllerMO 699 H1X | Motor ControllerMO 699 H2X |
|---|---|---|
| Communication | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol | SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol |
| Casting Material | GF 30 % Polyamid | GF 30 % Polyamid |
| Operating Voltage | 8~32 VDC | 8~32 VDC |
| Power Consumption | 80mA typ. (no load) | — |
| Operating Temperature | -40°C ... +85°C | — |
| Protection Class | IP67 | IP67 |
| Connector | 2x4 Pin Deutsch DT Connector | 2x4 Pin Deutsch DT Connector |
| I/O Class | Valve Controller | Motor Driver |
Real-time control loops, no delays.
Live output states, fast signal processing and deterministic CAN messaging keep hydraulic, drive and body functions responsive under load.
Engineered for harsh duty cycles.
Every controller passes the same EMC, vibration, salt-spray and thermal-shock test programme — the only thing that changes between models is the I/O count and connector layout.
- IP67 (The eco controller series provides IP30 protection)
- -40°C ... +85°C
- 8~32 VDC
- SAE J1939 (CAN 2.0A/2.0B), UDS (ISO 14229) protocol
- Mix IO, Valve Driver
- USB to CAN / USB2CAN interface
Where our controllers go to work.
Specified by OEMs across off-road, marine and industrial automation. Tell us about your platform and we'll spec the right module mix and harness layout.
- Hydraulic valve & cylinder control
- Motor & actuator drive systems
- Lighting & body electronics
- Hitch, header & implement control
- Marine helm & deck systems
- Material handling & AGV platforms
