M-34 / Door Access Systems
MO 055

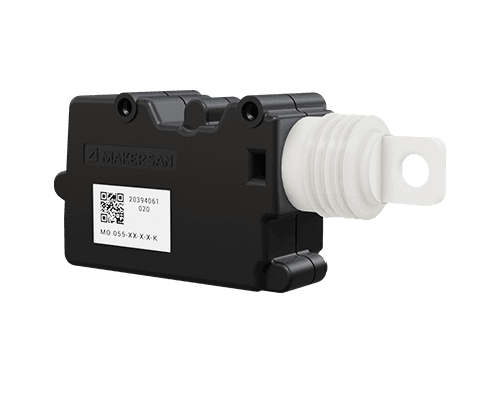

DC Motor Actuator · Electric central-locking actuator for latches, trunks and lift gates
MO 055 is a DC-motor central-locking actuator for door latches, trunk lids and lift gates, built around a high-quality DC motor and micro-switches in a glass-fibre reinforced polyamide case.
- Supply
- 12V / 24V
- Force
- 25 / 50 N
- Stroke
- 20 mm
Overview
Built to drive door latches, trunks and lift gates.
Highlights
- Electric central-locking actuator
- 50,000-cycle service life
- IP54 sealed housing
- 12V / 24V, 25–50 N
Specifications
- Type
- DC motor actuator
- Supply voltage
- 12V or 24V
- Force
- 25 N (50 N configurable)
- Stroke
- 20 mm
- Weight
- 0.15 kg
- Service life
- 50,000 cycles
- Protection
- IP54
- Operating temperature
- -30°C to +80°C
- Material
- 30% glass-fibre reinforced polyamide
- Connector
- None or AMP 928161-2
Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 055
- XX
- X
- X
- X
X stands for the digits you pick from the table.
MO 055 | XX Motor Type | X Micro Switch Type | X Connector | X Force |
|---|---|---|---|---|
| 12 - 12V | 0 - Without Micro Switch | 0 - Without Connector | - 025N | |
| 24 - 24V | 1 - With Micro Switch | 1 - AMP 928161-2 Connector | K - 50N |
Example:
- MO 055
- 12
- 1
- 0
- K
