MO 400

Touch Button · Capacitive touch button with NPN/PNP output and legend options

MO 400 is a capacitive touch button with no moving parts, offering NPN and PNP output options, selectable legends and idle/touched illumination states for modern cab panels.

Sensing: Capacitive touch
Output: NPN / PNP
Legends: L001-L006

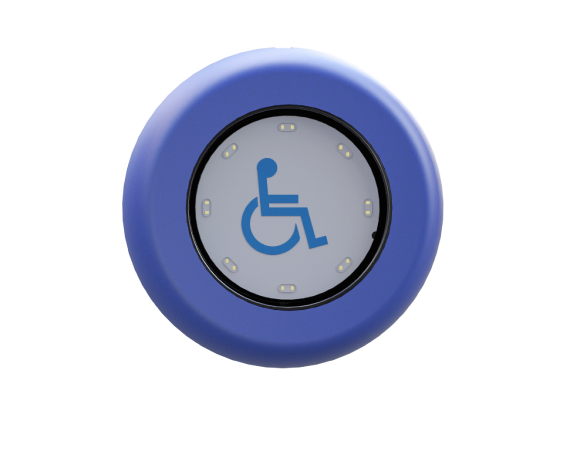

Makersan MO 400 capacitive touch button.

Overview

Built for solid-state capacitive touch input.

Highlights

Solid-state capacitive touch, no moving parts
NPN and PNP output options
Selectable legend layouts
Idle / touched illumination feedback
Sealed flush panel-mount

Specifications

Sensing technology: Capacitive touch (no moving parts)
Output: NPN and PNP options
Legends: L001-L006 layouts
Illumination: Idle / touched states
Mounting: Sealed flush panel-mount

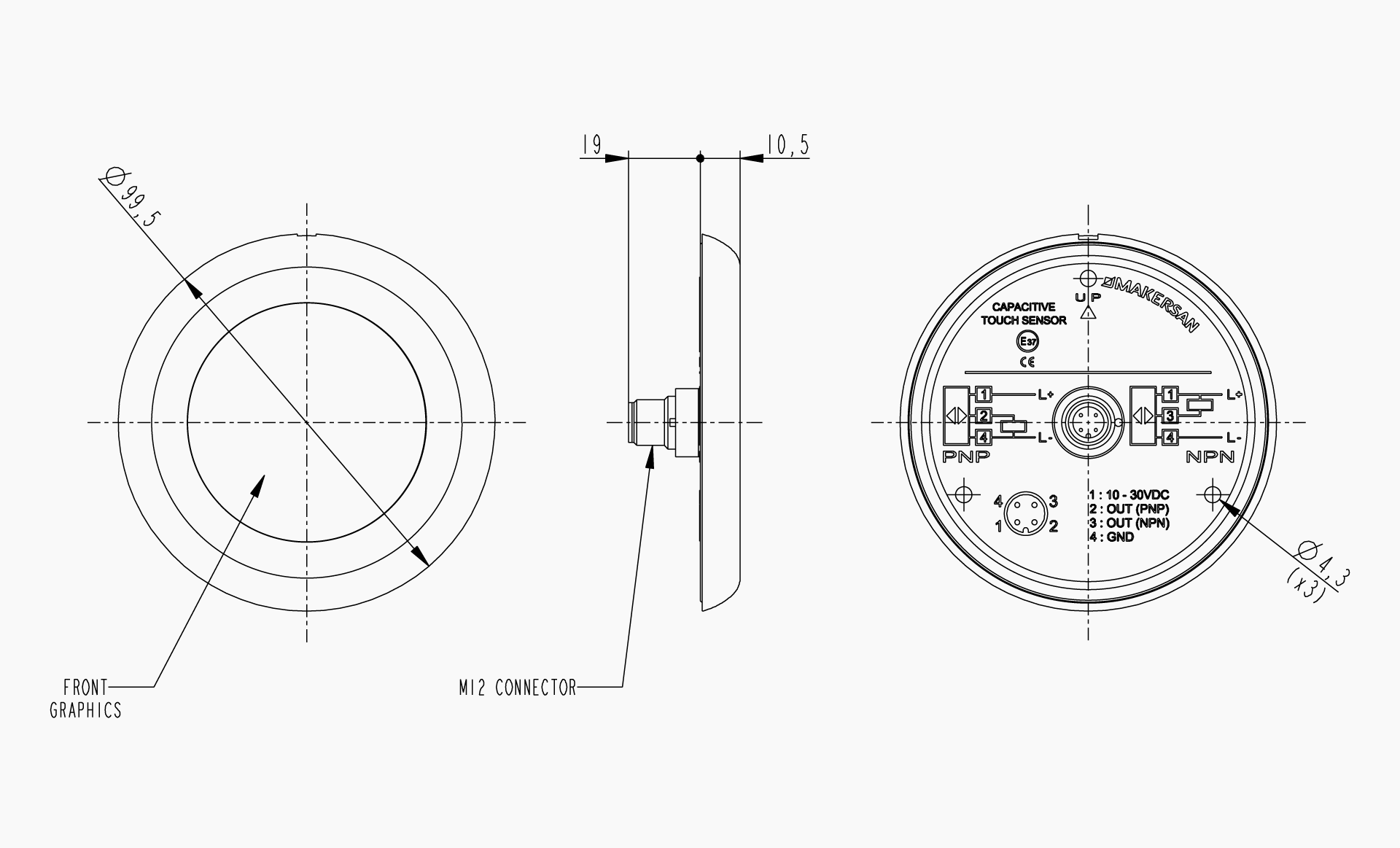

Engineering views

Drag to browse · click to enlarge

Configuration options

Legend layouts

L001
L002
L003
L004
L005
L006

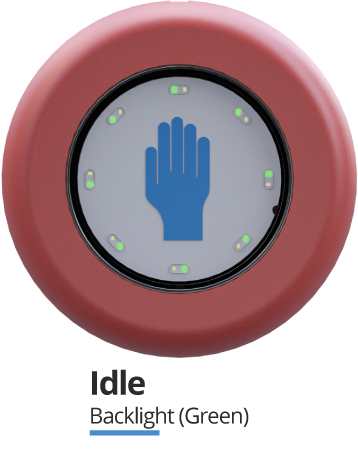

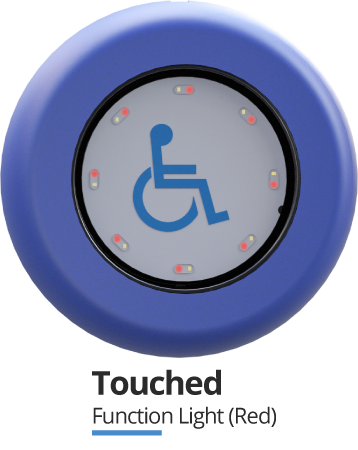

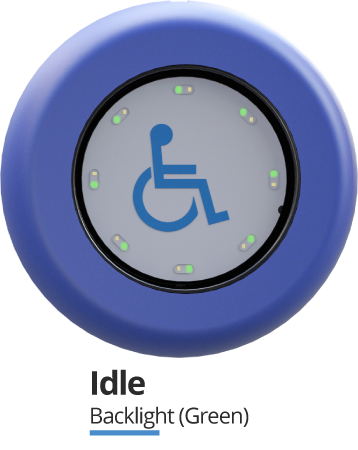

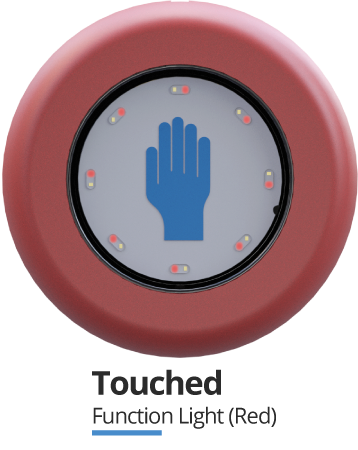

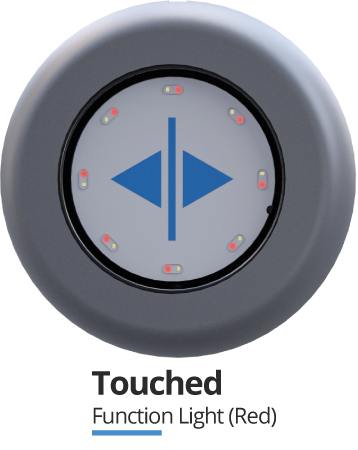

Illumination states

Order Code

Build the order code from its segments

Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.

MO 400
H1X
X
LXXX
XX

X stands for the digits you pick from the table.

H1X Type	X Color	LXXX Legend	XX Connection
H10 - One Pulse	1 - Red	* Refer the Legends table	CB - 250mm Loose Cable (AWG 20)
H11 - Continuous Pulse	2 - Green		CN - M12 Connector (AWG 24)
	3 - Yellow
	4 - Black
	5 - Blue
	6 - Orange
	7- Gray

Example:

MO 400
H10
1
L001
CB
