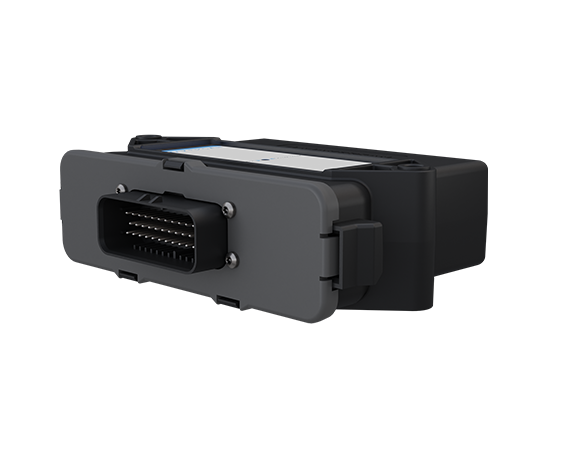

MO 692 H9X
Relay I/O Controller
- J1939 or CANopen protocol
- GF 30 % Polyamid
- 24 VDC
- -40°C … +80°C
- IP67
- 35 Pin Tyco Seal
- USB2CAN Interface for Configuring Device
- Up to 9 Digital Inputs
- Up to 1 Low-Side Digital Output (500mA)
- 7 Relay Outputs (8 A/ch)
Order Code
MO 692 - | H9X - Hardware | SXXXX Software |
|---|---|---|
H90 - 8 Digital Inputs, 7 Relay Outputs, 1 Low-Side Digital Output with CAN | S1000 - Default * |
* Available upon request with minimum order quantity.
Example: MO 692 – H90 – S1000
