MO 047
Door Handle
- Suitable for Coach passenger doors
- Black polyamid 30 % GF reinforced
- EPDM rubber seal
- UV stabilized
- Patented mechanism
- 504 hours salt mist resistant
- 0,430 Kg
- Indication microswitch option is available
- Single or double outside push switch option is available

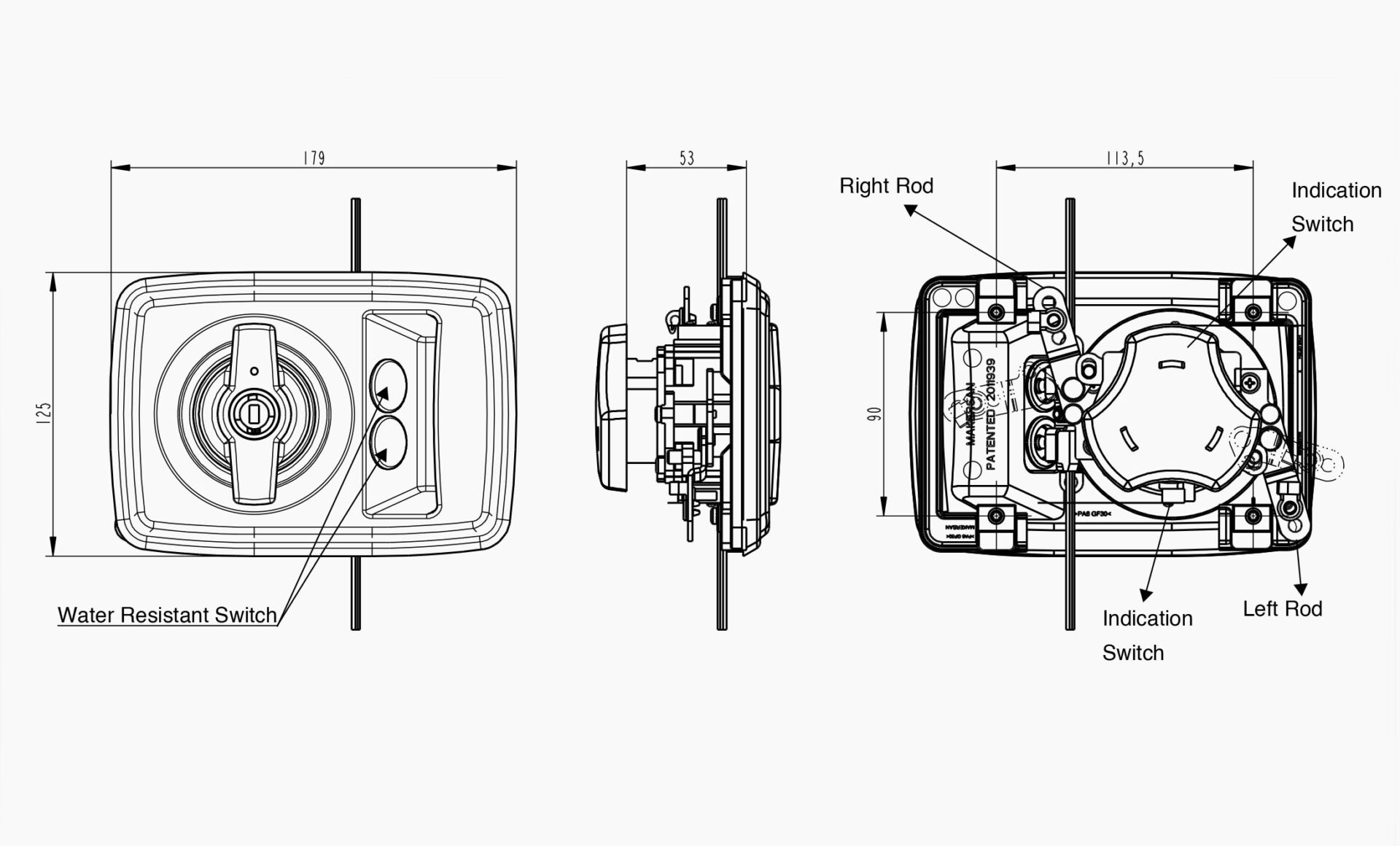

Technical Drawing
Order Code

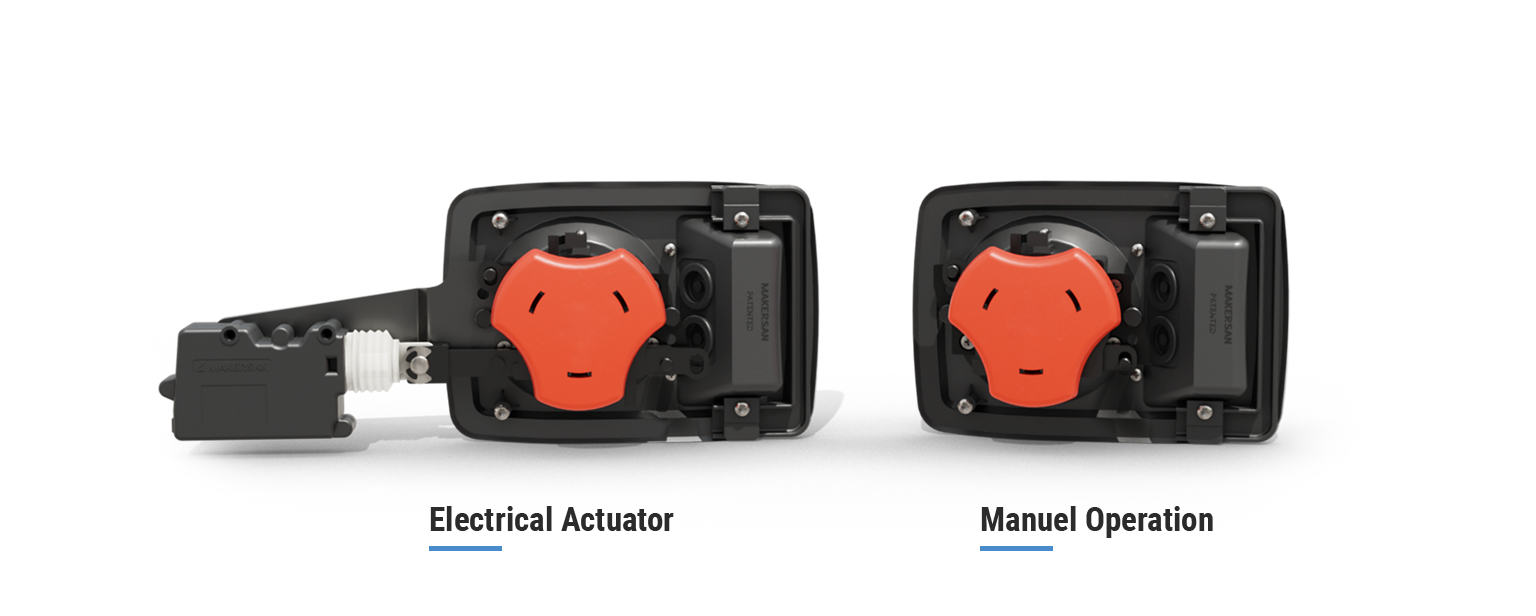

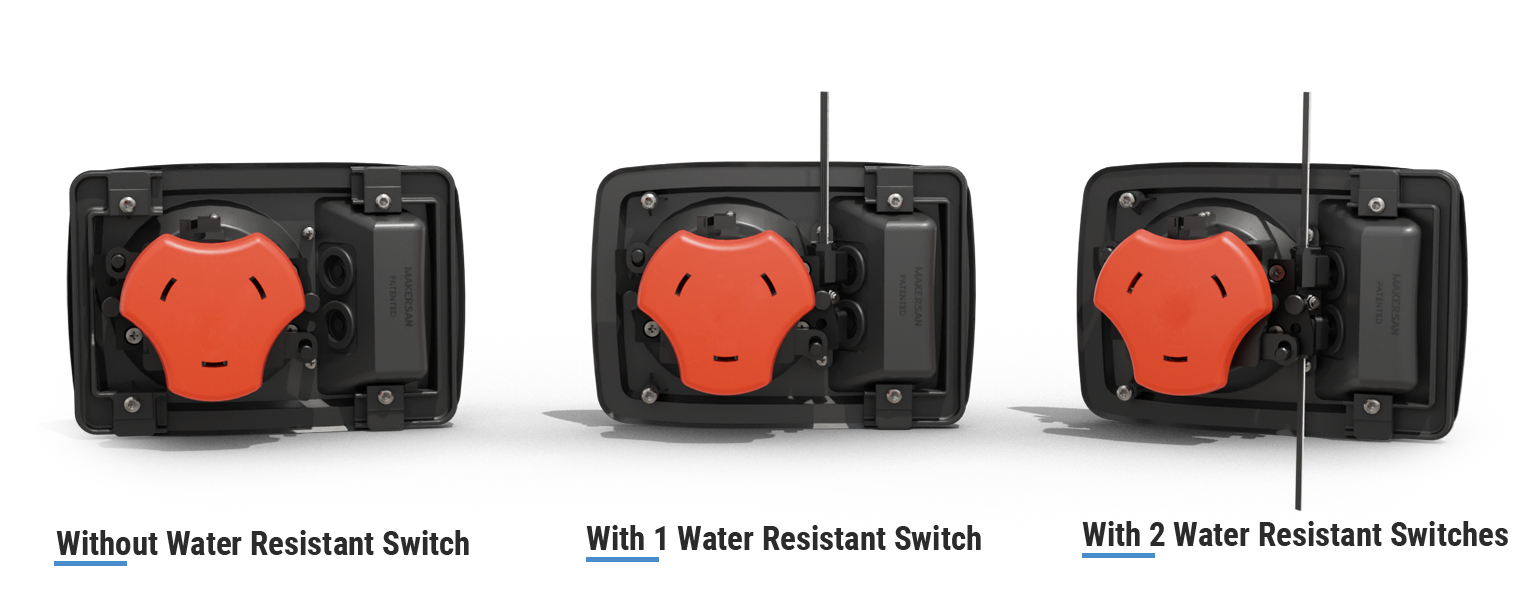

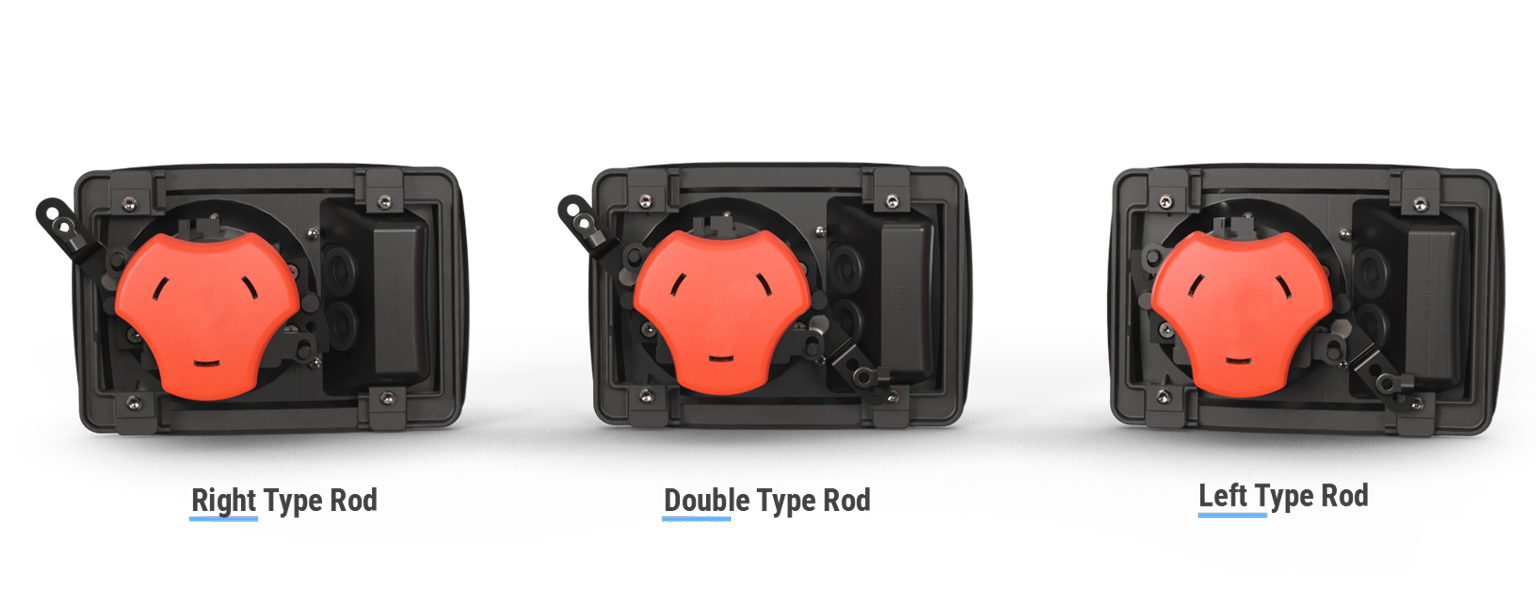

MO 047 - | X - Rod Type | X - Indication Switch | X - Outside Water Res. Switch | XXX - Key Actuation | X Rotation From Inside |
|---|---|---|---|---|---|
L - Left | 0 - Without Switch | 0 - Without Switch | E12 - 12V Electrical Actuator | - Block | |
R - Right | 1 - With 1 Switch | 1 - With 1 Switch | E24 - 24V Electrical Actuator | 1 - Free | |
D - Double | 2 - With 2 Switches | 2 - With 2 Switches |
Example: MO 047 – L – 1 – 0 – E12 – 1
