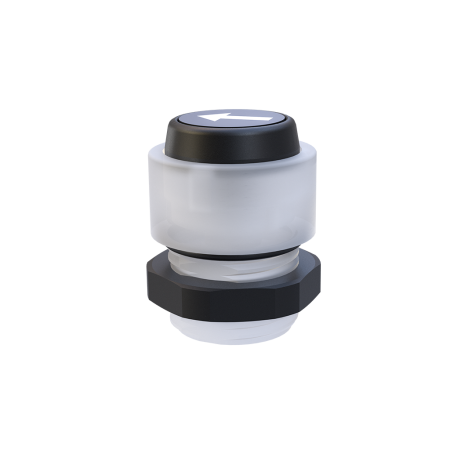

MO 392
Push Button
- Non-contact Hall switch
- Up to 2 million lifetime cycles
- M12x1 thread with locking nut
- Blue LED illumination and red LED function illumination, sealed housing
- Customized color options, customized symbol options
- –40C° … +85C°
- IP6K9K electronic / IP54 mechanical
- 5V or 12V or 24V
- Low Side switch (NO), 10mA
Technical Drawing
Symbol Options
Code |
Symbol |
Description |
| P001 |  |
RAL 9003 Signal white |
| P002 |  |
RAL 3001 Signal red |
| P003 |  |
RAL 5005 Signal blue |
| P004 |  |
RAL 6010 Grass green |
| P005 |  |
RAL 1023 Traffic yellow |
| P006 |  |
RAL 2010 Signal orange |
| P007 |  |
RAL 9005 Jet black |
| P008 |  |
RAL 7043 Traffic grey B |
Code |
Symbol |
Description |
| P051 |  |
Background color: RAL 7043 Legend color: RAL 9003 Arrow |
| P501 |  |
Background color: RAL 7043 Legend color: RAL 9003 Arrow |
| P502 |  |
Background color: RAL 9005 Legend color: RAL 9003 Differential Lock |
| P503 |  |
Background color: RAL 9005 Legend color: RAL 9003 Horn |
| P504 |  |
Background color: RAL 9005 Legend color: RAL 9003 |
Order Code
MO 392 - | H1X - Hardware Configurations | PXXX - Symbol Options | XX - Cable |
|---|---|---|---|
H10 - 5V | P001 - RAL 9003 | 00 - 250mm loose cable (AWG 24) | |
H11 - 12V | ** | 01 - Molex Micro-Fit Connector 250mm cable | |
H12 - 24V | *** | ||
H1W - 5-24V (no LED) | |||
* |
*5V supply voltage and blue LED / red LED function light is standard, other configs are available upon request with minimum order quantity.
**For other available symbols please refer “Symbol Options”.
***250mm loose cable is standard, other connections are available upon request with minimum order quantity.
Example: MO 392 – H10 – P001 – 00
