MO 381D
Clutch Pedal
- Suspended type
- Suitable for different engine interfaces
- Contactless measuring principle
- Full redundant double programmable outputs
- Dual Analog type : 0-5V / PWM
- Analog+IVS type : Analog+Highside or Lowside Switch
- Analog , PWM , IVS options.
- 5 V or 8-32 V Supply Voltage
- IP6K9K Sensor
- 6 way, Delphi Packard Metric Pack 150
- Two independent springs
- -40 0C …… +85 0C Operating Temperature
- More than 1 million actuation
- 3,4 kg
- Heavy duty metal case
- Commercial and off road vehicles

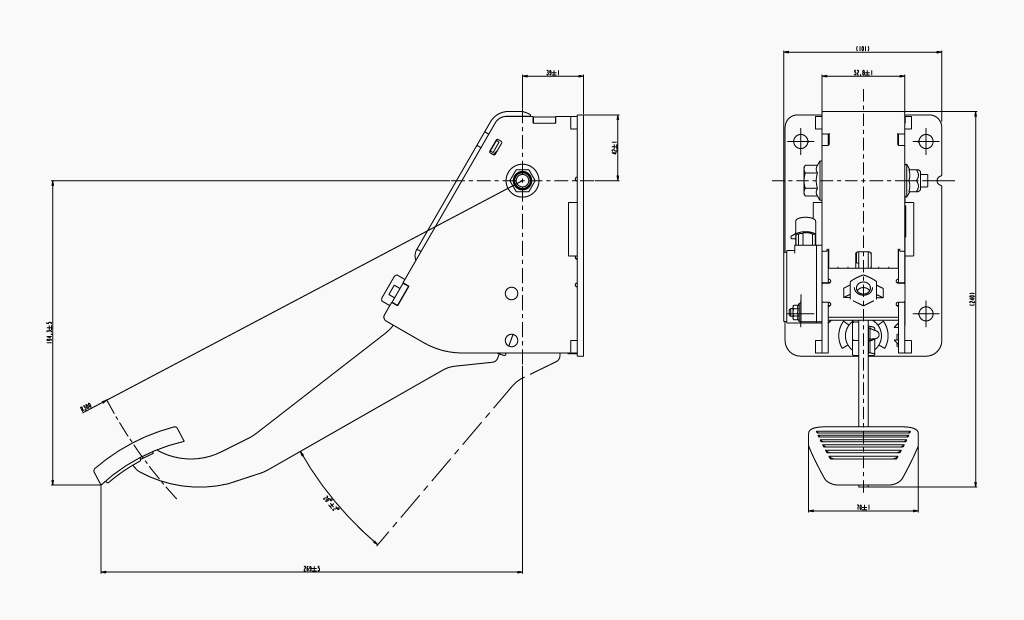

Technical Drawing
Order Code
MO 381D - | X - Pedal Rod Type | PXXX Sensor Program |
|---|---|---|

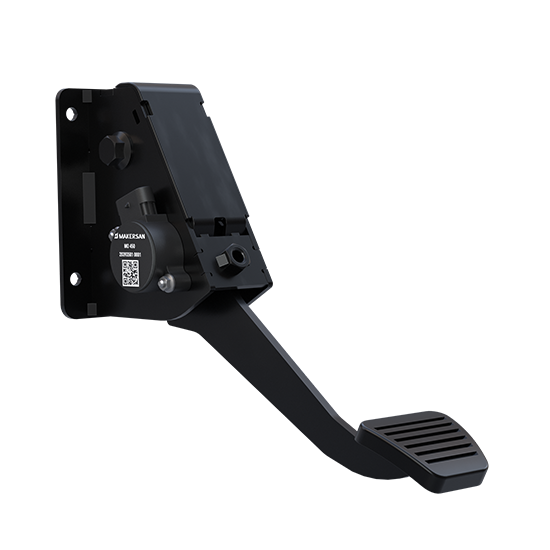

01 - Standard Type | P009 - Dual Analog P009 | |
* |
* Different programs can be produced on request.
Example: MO 381D – 01 – P009
